The Exploration Canvas #

The Exploration Canvas is the primary workspace in SemSpect. It visualizes the graph topology, allowing users to manipulate layout, throttle data density, and locate specific nodes within the visible network.

Toolbar Controls #

The top toolbar controls graph layout and navigation.

Toolbar

Layout & Navigation #

  • Zooming: Use (+) / (-) buttons or the mouse wheel to adjust magnification.
  • Clearance: Adjusts the spacing between groups to reduce overlap.
    • Horizontal Clearance: Increases left-right distance.
    • Vertical Clearance: Increases top-down distance.
  • Fit to View: Click the Target Icon to center and zoom the graph so all nodes fit within the viewport.

History (Undo/Redo) #

SemSpect maintains a session history stack.

  • Undo: Reverts the last action (e.g., removing a filter).
  • Redo: Reapplies the undone action.

Undo Redo Controls

Managing Density (Max. nodes) #

To manage browser performance and visual density, SemSpect aggregates nodes into groups based on a user-defined threshold. Use the Max. nodes dropdown to set this limit.

Aggregate View (Count > Threshold) #

If a group contains more nodes than the limit, it renders as a single circle displaying the total count. This mode is optimal for high-level topology analysis.

Aggregate View

Instance View (Count ≤ Threshold) #

If the count is below the limit, the group expands to render individual dots.

  • Hubs: nodes with higher predecessor counts appear larger and gravitate toward the center.
  • Badge: The number inside each dot represents its exact predecessor count (incoming connections).

Instance View

Locate specific nodes within the currently visible graph.

  • Scope: Searches only expanded nodes on the canvas. It does not query the backend for hidden data.
  • Behavior: Matches are highlighted with an orange flag and caption.

Search Visible Objects

Exporting Visuals #

Export the current canvas state for reporting.

  • Access: Right-click the canvas background or use the Exploration menu.
  • Formats:
    • Raster (PNG): For slides and quick sharing.
    • Vector (SVG): For high-resolution print or editing.

Database Summary #

When no group or connection is selected, the right-hand Details sidebar displays the Database Summary.

  • Trigger: Click the empty canvas background to deselect items.
  • Labels: Lists all available labels and their total cardinality.
  • Relationship Types: Lists all relationship types and assertion counts.

Database Summary Panel

Sorting: Use the Sort by dropdown to order lists by Name (alphabetical) or Quantity (cardinality) to identify the largest entities.

Application & Data Controls #

Database Selection #

For environments with multiple datasets:

  • Location: Bottom-right footer.
  • Usage: Click to switch the active dataset or snapshot.

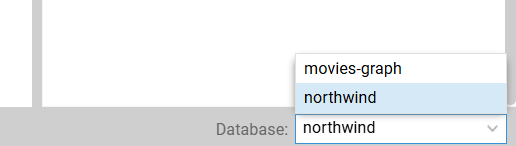

Database Selector

Application Settings #

Access global configuration via the top-left dropdown menu.

General Configuration #

  • Technical Details: Toggles visibility of low-level metadata, including node IDs and Cypher queries.
  • Tree Visibility: Hides empty or deactivated labels in the sidebar.

Settings Window

Troubleshooting & Resets #

  1. Reset local data: Clears browser-side preferences (column widths, sort orders).
  2. Reset graph data: Performs a “Factory Reset” of the analysis.

Destructive Action

Reset graph data permanently deletes all Custom Labels and Saved Explorations associated with the current database. This cannot be undone.

Error Logging #

Use Export error log (Main Menu) to generate a JSON diagnostic file for support requests.
